Architecturally designed luminaires
All products designed and manufactured in the UK by Hacel.
iMod® Grid

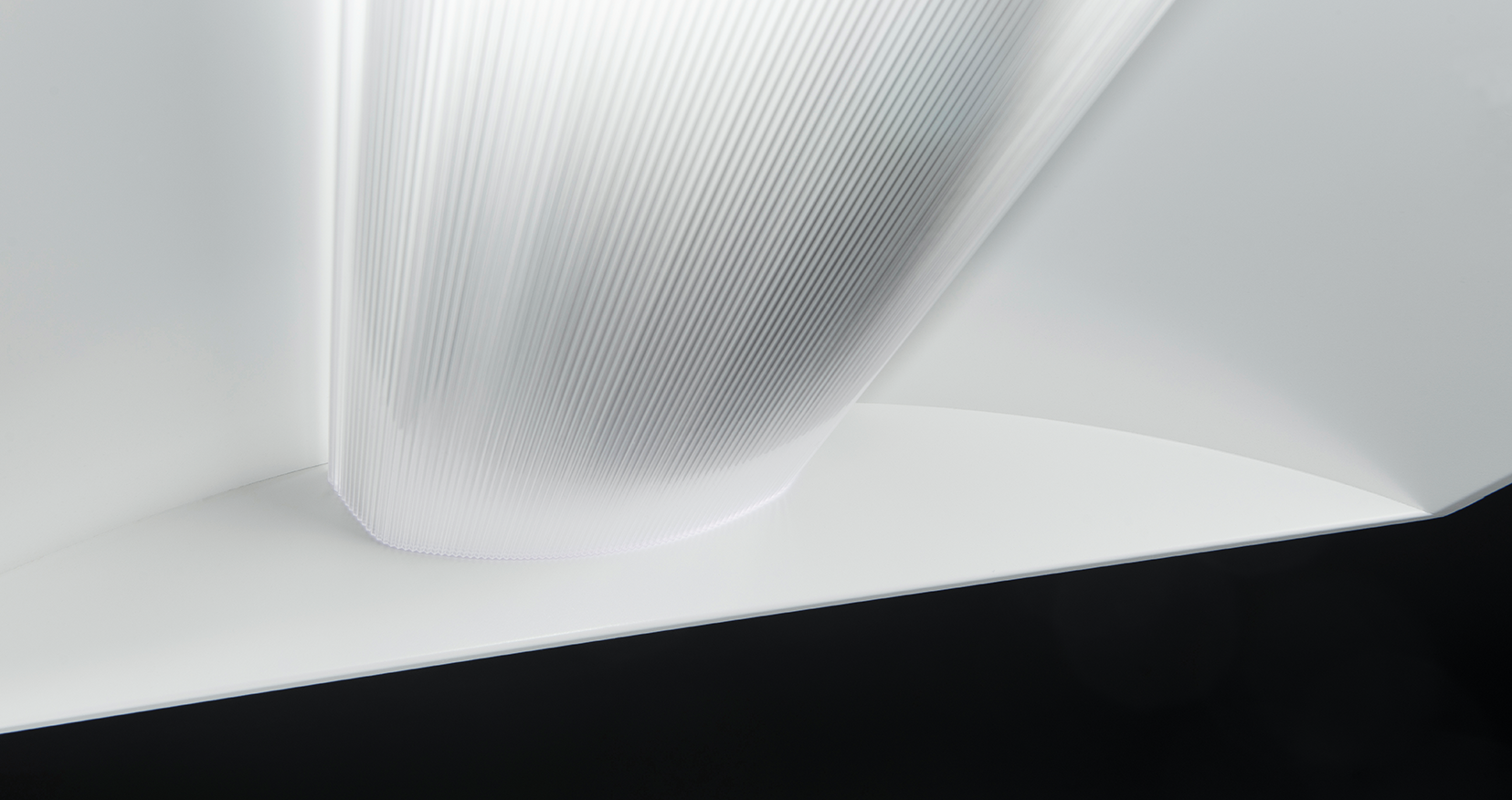

A class leading LED modular luminaire distinctively styled, featuring a ribbed polycarbonate refractor and micro fusion film. Utilising Tridonic LED Modules, the iMod Grid LED is LG7 compliant in accordance with SLL Code for Lighting 2012.
- Available in a choice of lumen outputs, delivering up to 4380 lumens
- Efficacies up to 148 lm/W
- Outstanding performance with an LOR of 0.91
- Luminance limits below 3000cd/m2 at the 65° cut off in accordance with SLL Code for Lighting 2012
- Life expectancy in excess of 72,000 hours (L80 B10)
- Wireless Lighting Control available, see Connected video for full overview
- 3000K and 4000K versions available
- Zhaga Book 7 LED
- Colour stability within 3 MacAdams
- Suitable for 15mm and 25mm T grid ceilings
- TP(b) rated as standard with TP(a) available on request
- Wide choice of gear types and controls available
To Specify:
iMod® Grid
Your product code:
Product specification: iMod Grid
