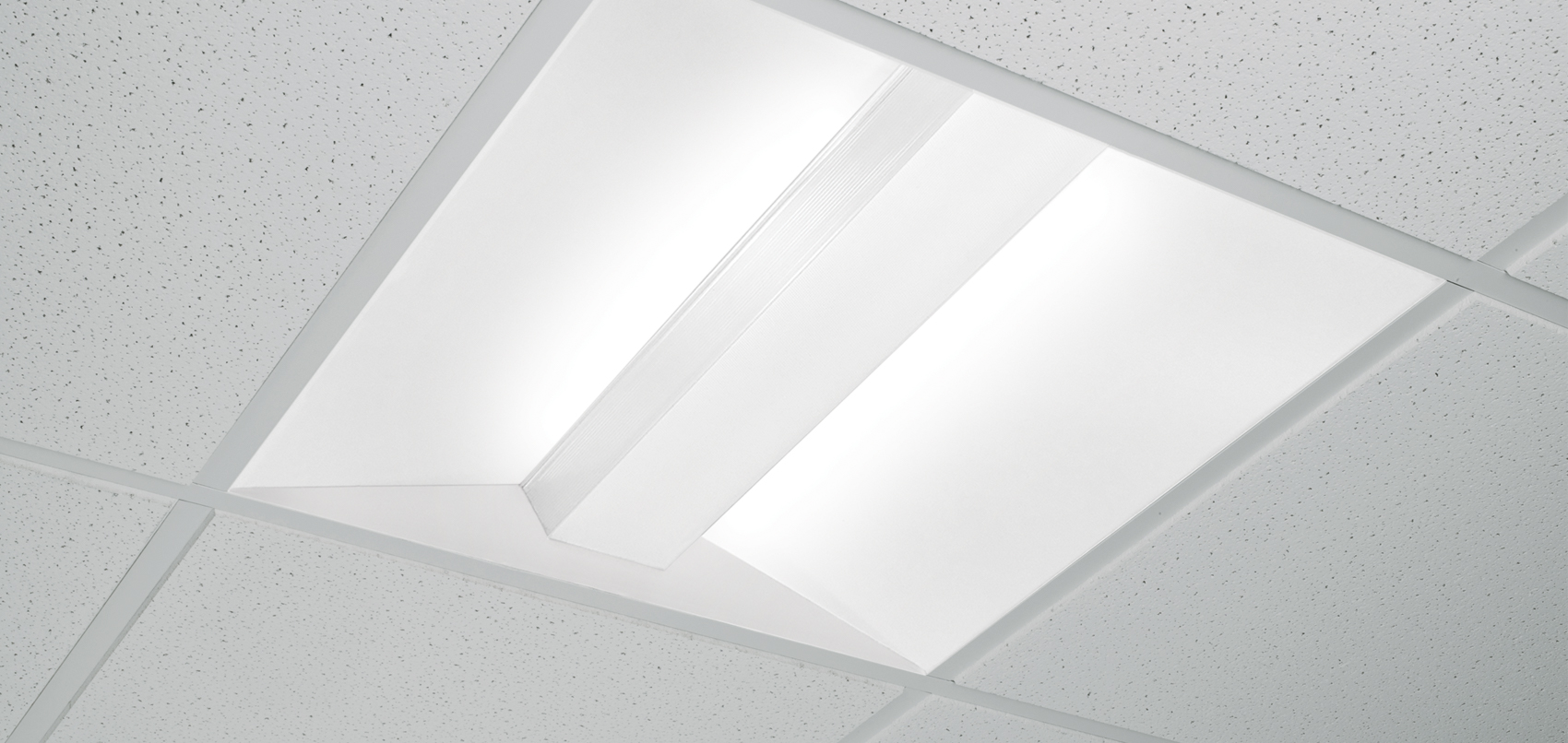

iMod® Evolva Grid

Providing efficiency and optimal light comfort, the latest generation iMod Evolva designed and manufactured in the UK by Hacel maximises wellbeing. Utilising linear and microprisms with a clear polycarbonate refractor, the iMod Evolva delivers an outstanding UGR of 18.3. A wide range of gear types and controls are available.

  • Available with Bluetooth wireless lighting controls
  • Zhaga Book 7 LED
  • Available in a choice of lumen outputs, delivering up to 5053 lumens
  • Efficacies up to 145 lm/W
  • High quality Linear/Micro Prism refractor offering UGR <19
  • Luminance limits below 3000cd/m2 at the 65° cut off in accordance with SLL Code for Lighting 2012
  • Life expectancy in excess of 72,000 hours (L80 B10)
  • Wireless Lighting Control available, see Connected video for full overview
  • Colour stability within 3 MacAdams
  • Suitable for 15mm and 25mm T grid ceilings

To Specify:

Use the Code Generator below to select your product specification. Once completed select ‘add to schedule’ to create a schedule of luminaires, your schedule can be found at the top right hand side of the page.

Your product code:

Product specification: iMod Evolva Grid
