Opal Module

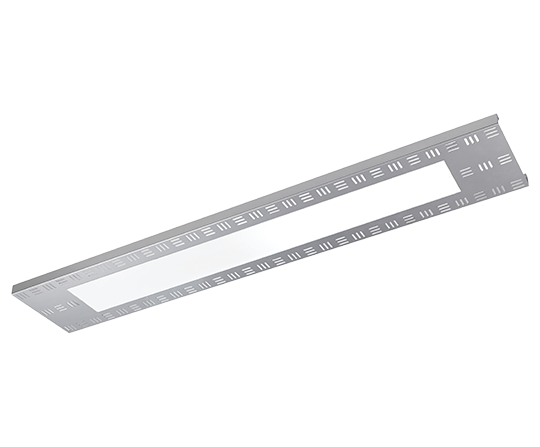

Network® Opal

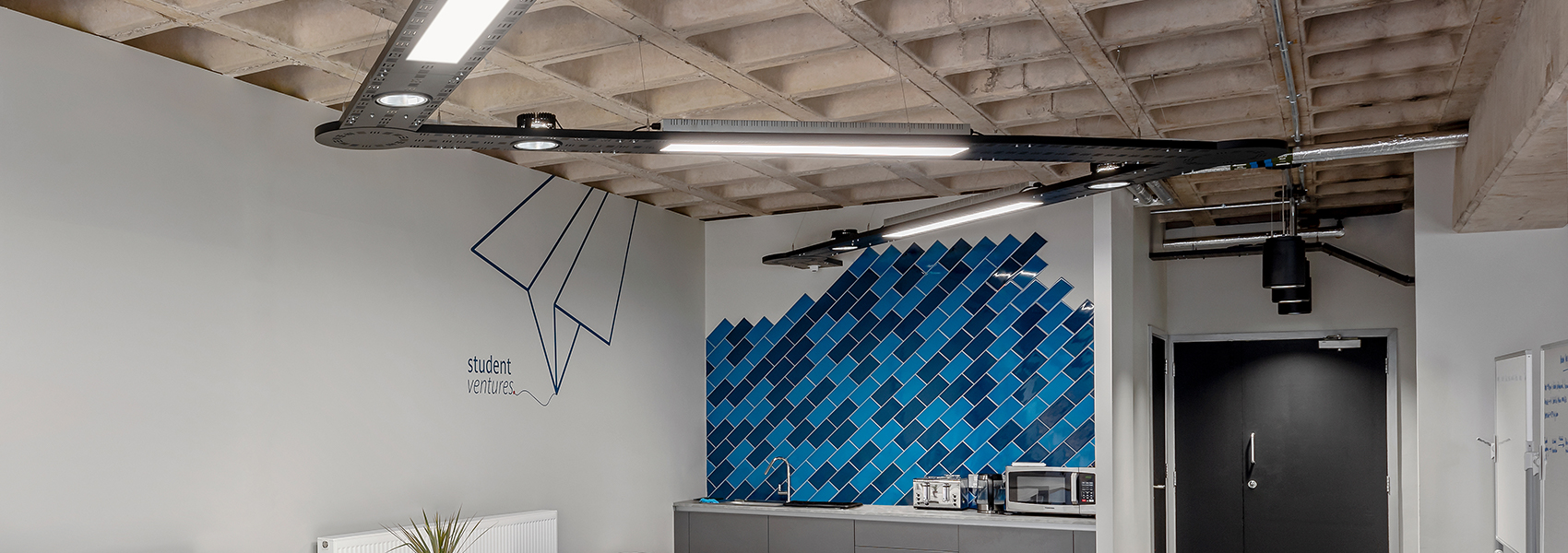

Network simply and seamlessly integrates a choice of high performance Hacel luminaires into a distinctive and versatile structural lighting system. Large or small installations can be creatively and imaginatively configured into lighting compositions. Network modules are available in a wide choice of lengths, directional modules and universal couplers which enables an infinite number of design variations to be created. All modules are quality engineered and feature precision continuous geometric design with returned edge profile for rigidity and cable concealment. Twin, single point fixing suspension wires enable adjustable mounting at various points on the system. Luminaires are pre-wired to their own terminal point and can be specified with an optional interconnecting wiring system. A range of options for customisation are available including bespoke colours.

  • Lumen outputs from 4232 to 7732 lumens
  • Efficacies up to 149 lm/w
  • Life expectancy of 72,000 hours (L80 B10)
  • LOR of 0.87
  • High quality polycarbonate diffuser with a wipe clean surface
  • CRI 90 Version available
  • Available with Tunable White Technology
  • Available in White, Urban Graphite and Black or optional Bespoke Colours
  • Choice of gear types including Smart Lighting Control

To specify Network Opal, all product codes can be found on the Product PDF

If you require any advice with system specification, our Lighting Design team are on hand to assist with your requirements. Please contact
