Designed and Manufactured in Great Britain

Vertigo® Duet Linear

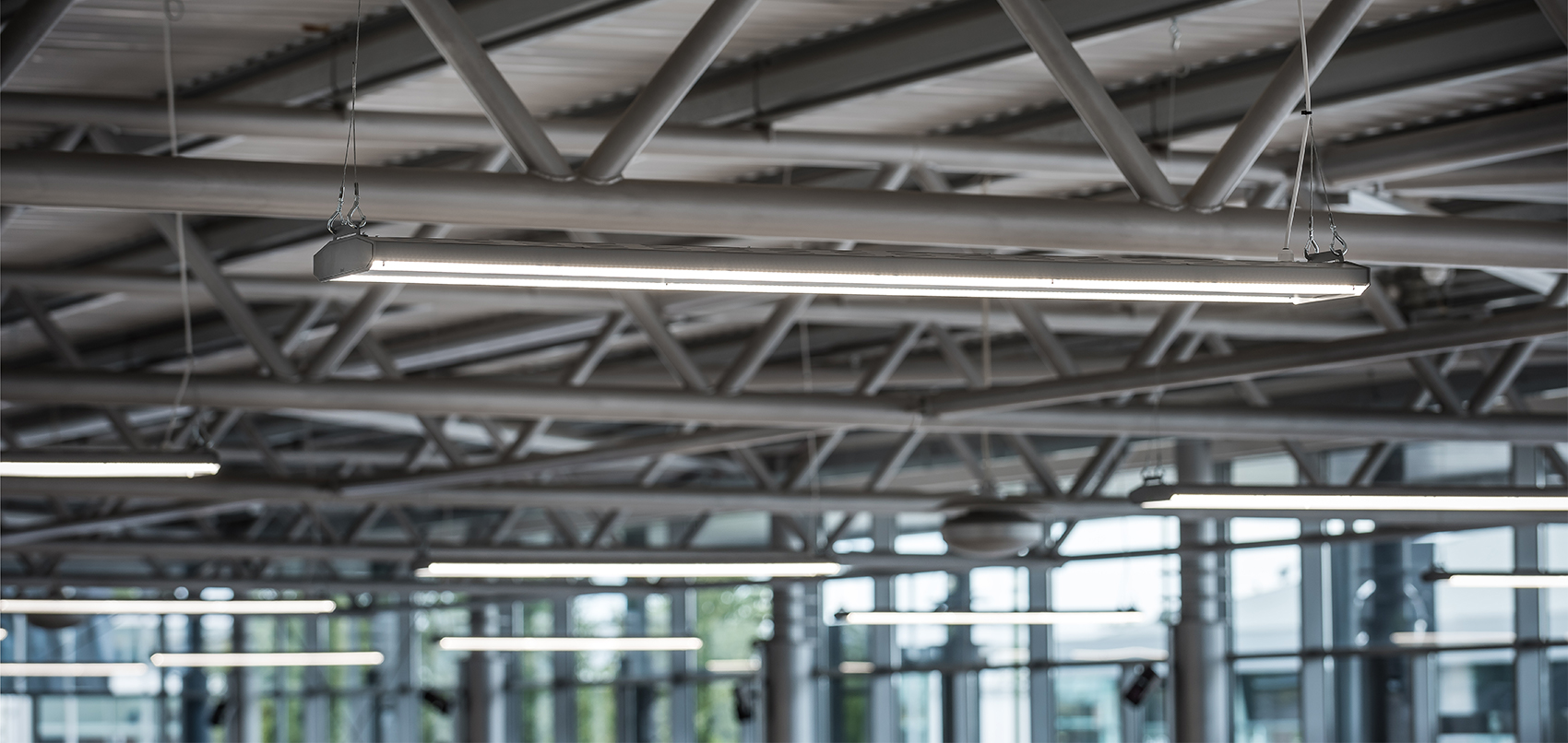

A new design featuring more compact dimensions with the same class leading technology, the Vertigo Duet Linear Highbay is perfect for a host of applications including Warehouses, Retail Outlets, Showrooms, Exhibition Venues, General Applications and Sports Halls (IK08 Compliant). Utilising refractor lens control to provide an accurate distribution of light, the Vertigo Duet Linear Highbay offers optimal light quality, long service lifetime, excellent UGR performance, reduced energy consumption and maintenance.

  • Available in a choice of lumen outputs delivering up to 23,894 lumens
  • Efficacies up to 126 lm/W
  • Wide beam refractor (82°) as standard, ideally suited to Warehouse and Superstore applications
  • Optional extra wide beam refractor (112°) for general illumination
  • Suitable for ambient temperatures up to 40°C
  • Life expectancy in excess of 72,000 hours (L80 B10) at 25°C ambient and 70,000 hours (L80 B10) at 40°C ambient
  • Colour stability within 3 MacAdams
  • The PIR Detector defaults can be modified with the use of the Hand Held Controller or Programmer (contact Technical for advice)
  • Versatile installation solutions include Suspended, Surface, Trunking and Gripple. (Gripple and Trunking not supplied with fixings)
  • Suspension versions supplied with 2 x 2m Suspensions and chrome clutches as standard
  • IK08 compliant
  • Wireless Lighting Control available, see Connected video for full overview

To Specify:

Use the Code Generator below to select your product specification. Once completed select ‘add to schedule’ to create a schedule of luminaires, your schedule can be found at the top right hand side of the page.

Your product code:

Product specification: Vertigo Duet Linear
