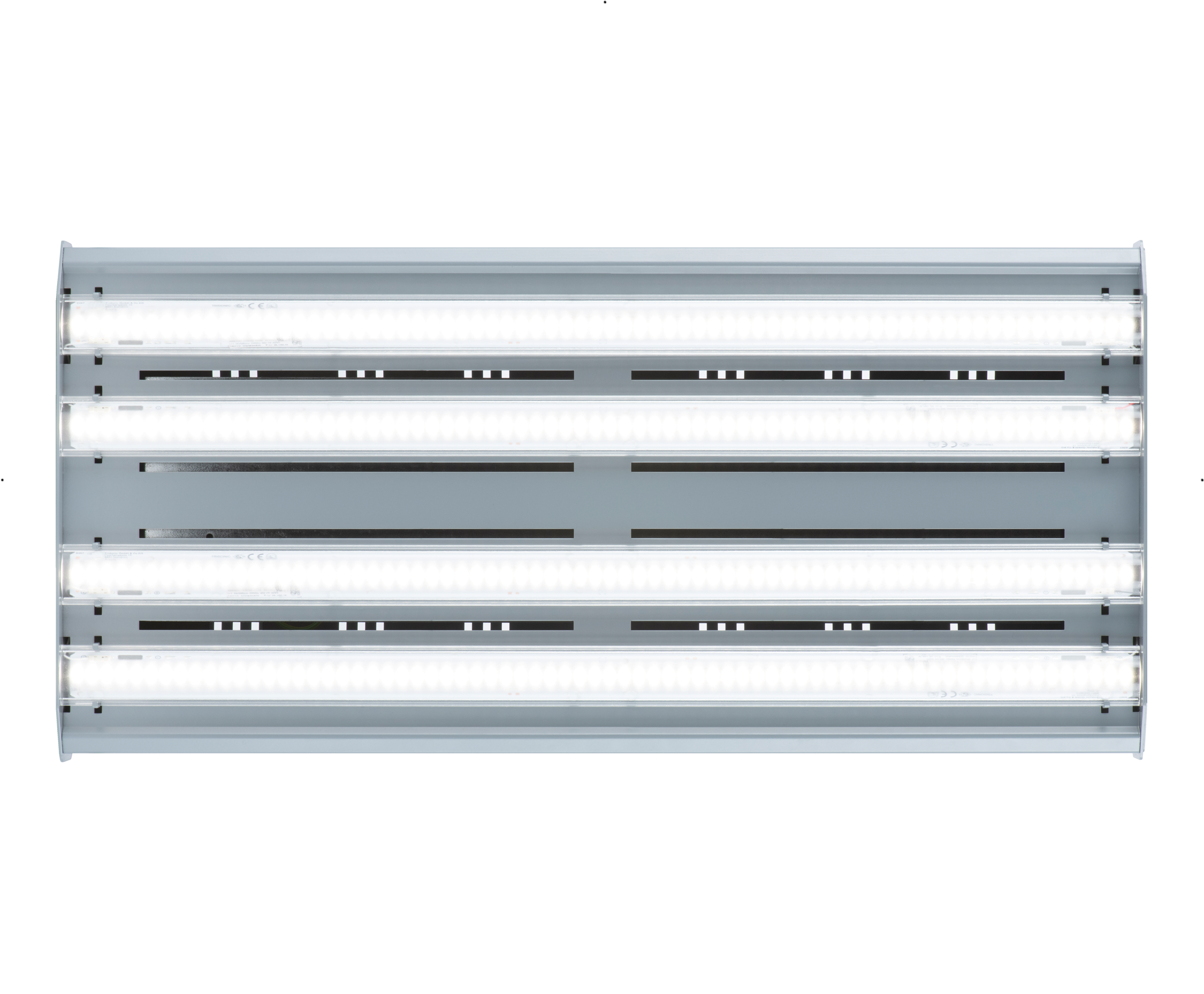

Vertigo® Quad

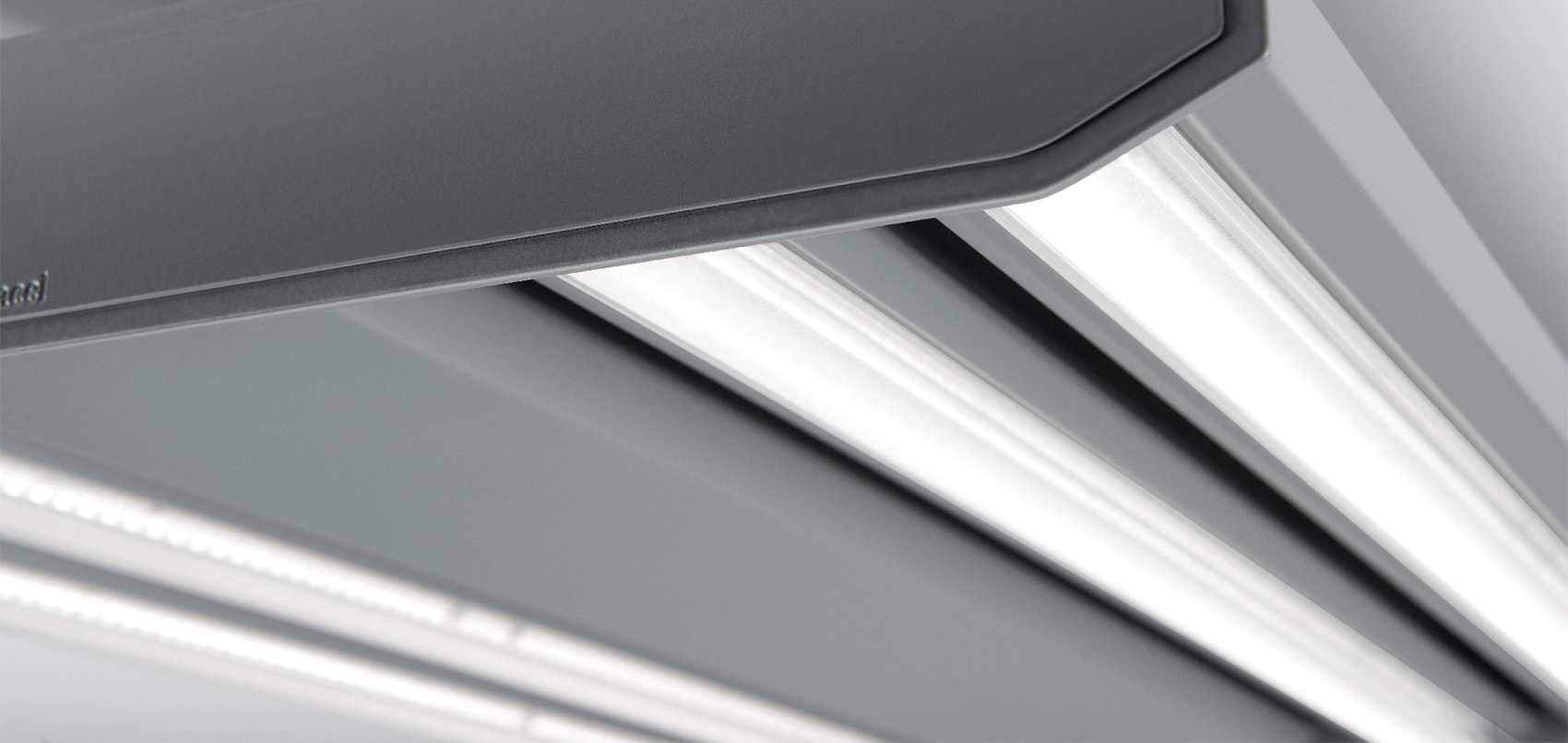

Utilising refractor lens control to provide an accurate distribution of light, Vertigo Quad is perfect for a host of application including Warehouses, Retail Outlets, Showrooms, Exhibition Venues, General Applications and Sports Halls (IK08 Compliant). Vertigo Quad offers the full benefit of class leading LED lighting; light quality, long service lifetime, excellent UGR performance, reduced energy consumption and maintenance.

  • Available in a choice of lumen outputs delivering up to 23,200 lumens
  • Efficacies up to 128 lm/W
  • Wide beam refractor (82°) as standard, ideally suited to Warehouse and Superstore applications
  • Optional Extra Wide beam refractor (112°) for general illumination
  • Suitable for ambient temperature up to 45°C
  • Life expectancy in excess of 72,000 hours (L80 B10) at 25°C ambient and 70,000 hours (L80 B10) at 45°C ambient
  • Colour stability within 3 MacAdams
  • The PIR Detector defaults can be modified with the use of the Hand Held Controller or Programmer (contact Technical for advice)
  • Versatile installation solutions include Suspended, Surface, Trunking and Gripple. (Gripple and trunking not supplied with fixings)

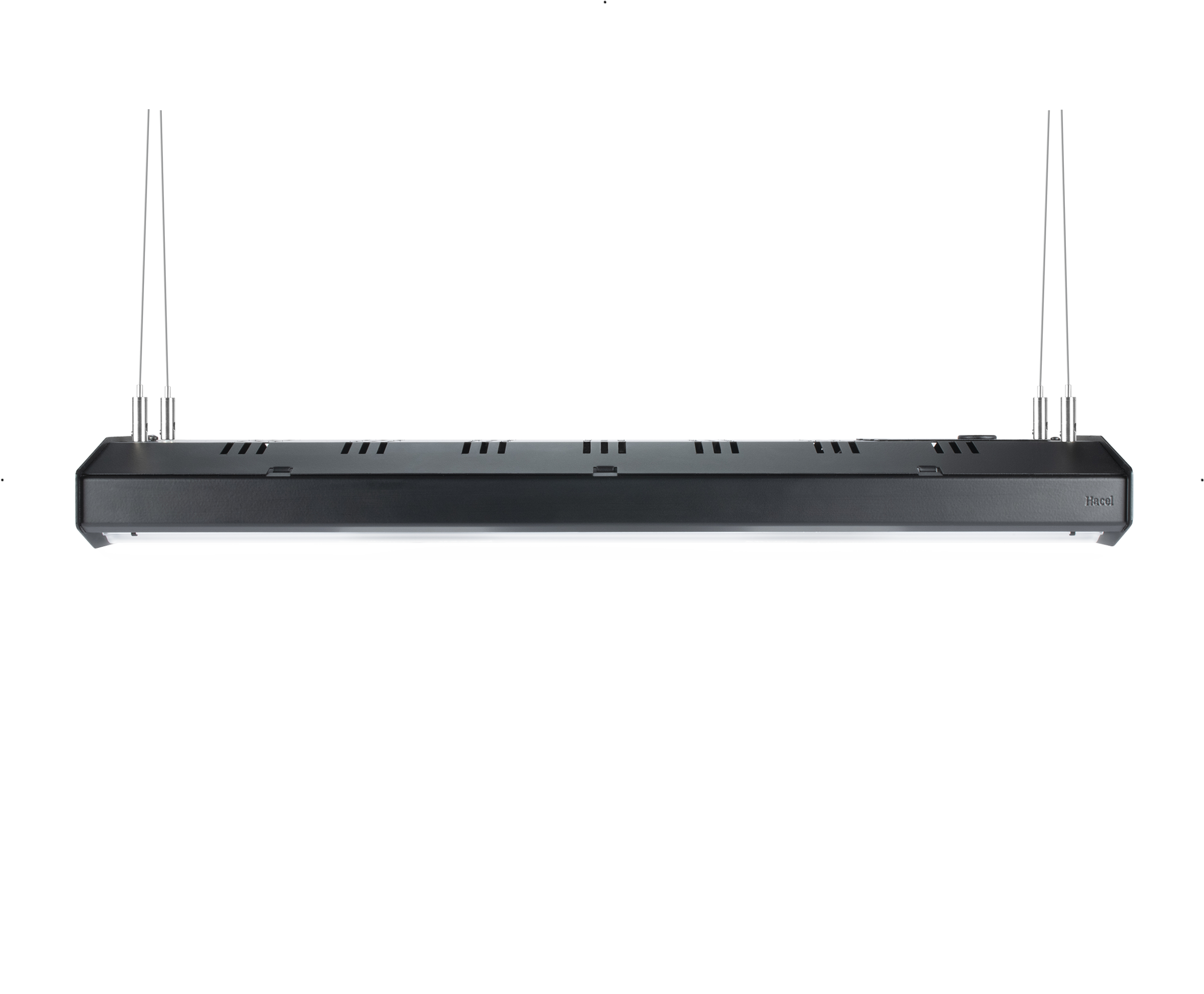

  • Suspension versions supplied with 2 x 2m Suspensions and chrome clutches as standard
  • IK08 Compliant
  • Wireless Lighting Control available, see Connected video for full overview

To Specify:

Using the Code Generator below to select your detailed product specification. Once completed select ‘add to schedule’ to create a schedule of luminaires, which can be found in the top right.

Your product code:

Product specification: Vertigo Quad
