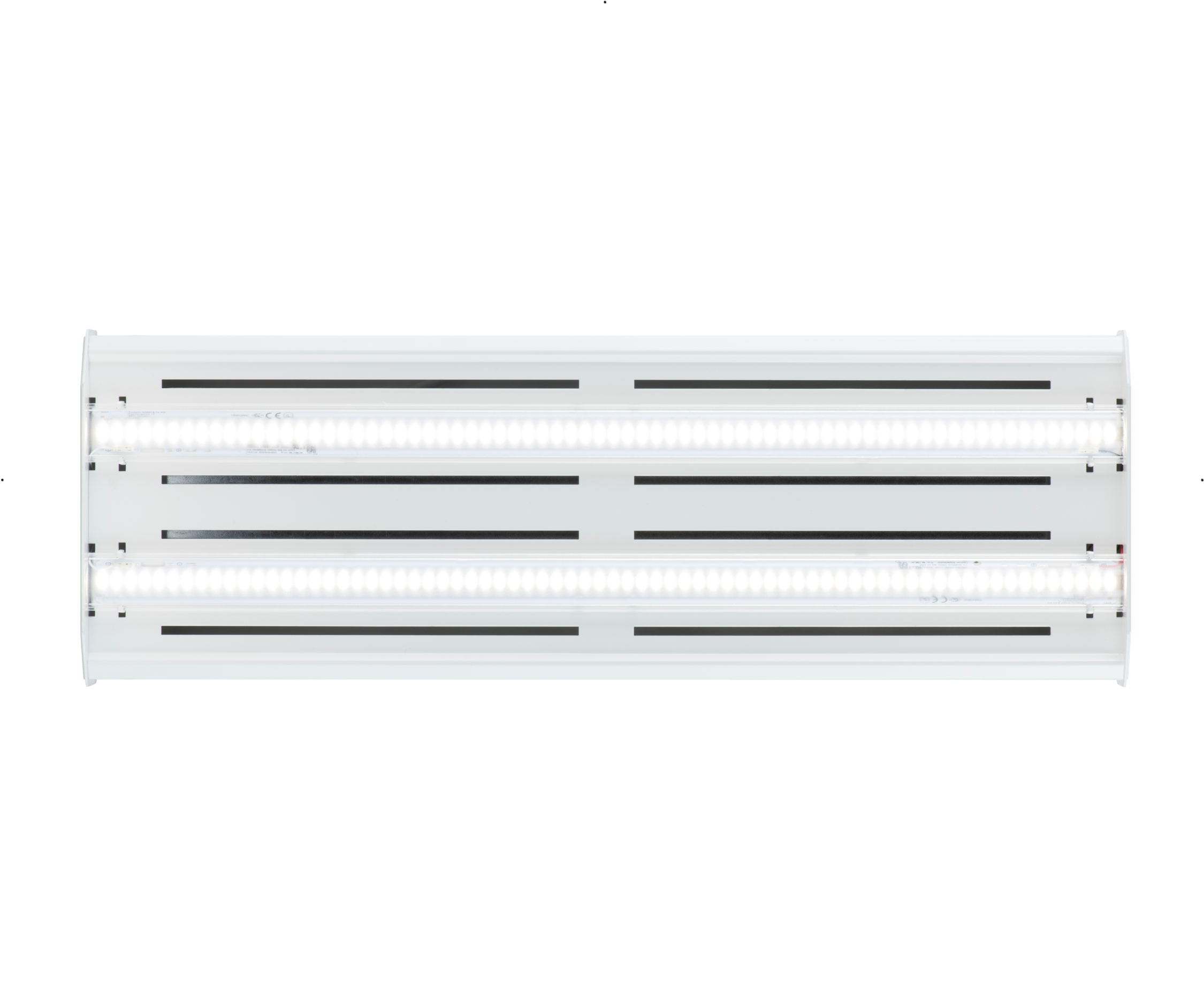

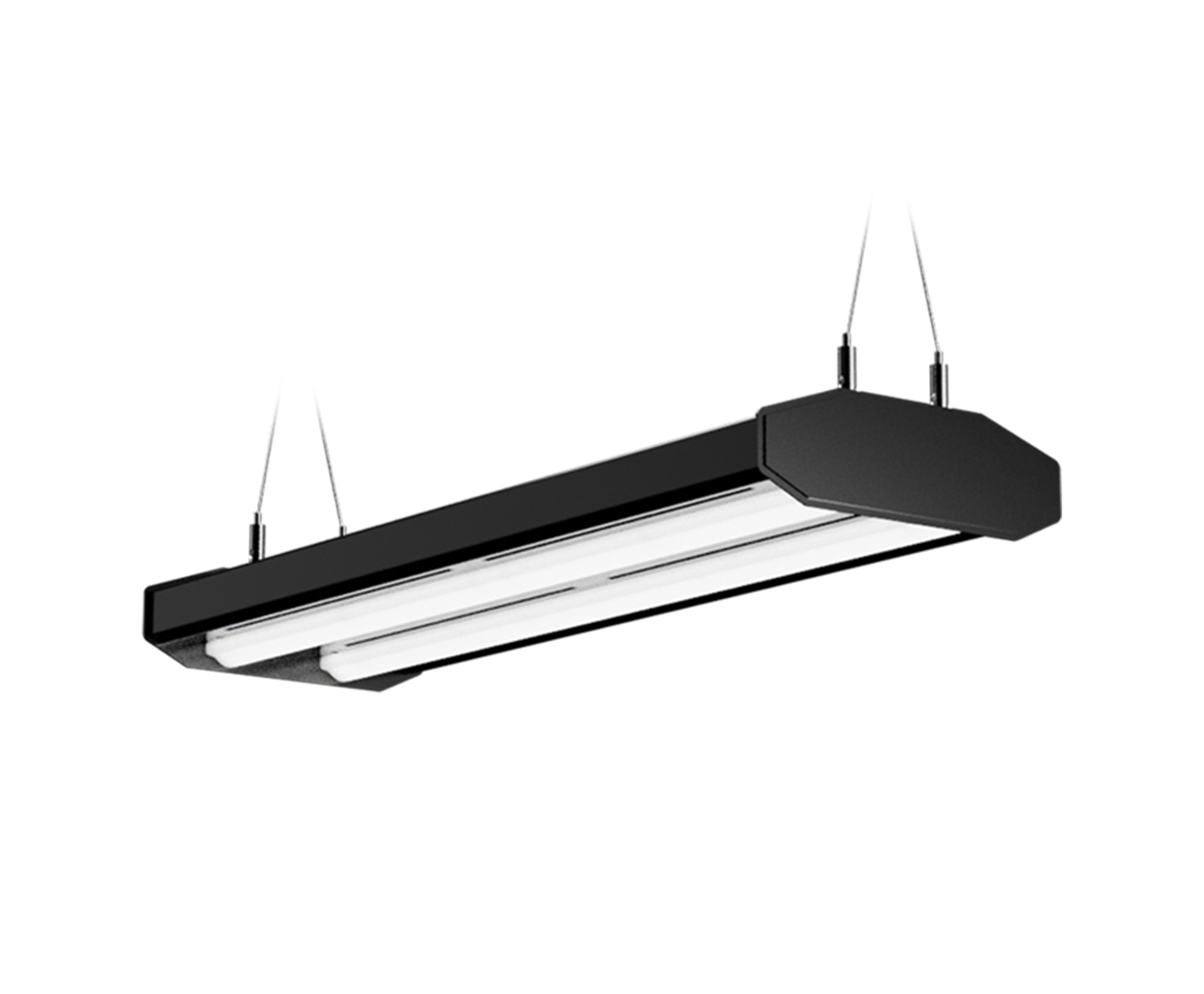

Vertigo® Duet

LED

Utilising refractor lens control to provide an accurate distribution of light, Vertigo® Duet Highbay is perfect for a host of application including Warehouses, Retail Outlets, Showrooms, Exhibition Venues, General Applications and Sports Halls (IK08 Compliant). Vertigo® Duet Highbay offers the full benefit of class leading LED lighting; light quality, long service lifetime, excellent UGR performance, reduced energy consumption and maintenance.


  • Available in a choice of lumen outputs delivering up to 10,720 lumens
  • Efficacies up to 116 lm/W
  • Wide beam refractor (82°) as standard, ideally suited to Warehouse and Superstore applications
  • Optional extra wide beam refractor (112°) for general illumination
  • Suitable for ambient temperatures up to 45°C
  • Life expectancy in excess of 60,000 hours (L70 B10) at 25°C and 49,000 hours (L70 B10) at 45°C
  • Colour stability within 3 MacAdams
  • The PIR Detector defaults can be modified with the use of the Hand Held Controller or Programmer (contact our Lighting Design department for advice)
  • Versatile installation solutions include Suspended, Surface, Trunking and Gripple. (Gripple and Trunking not supplied wth fixings)

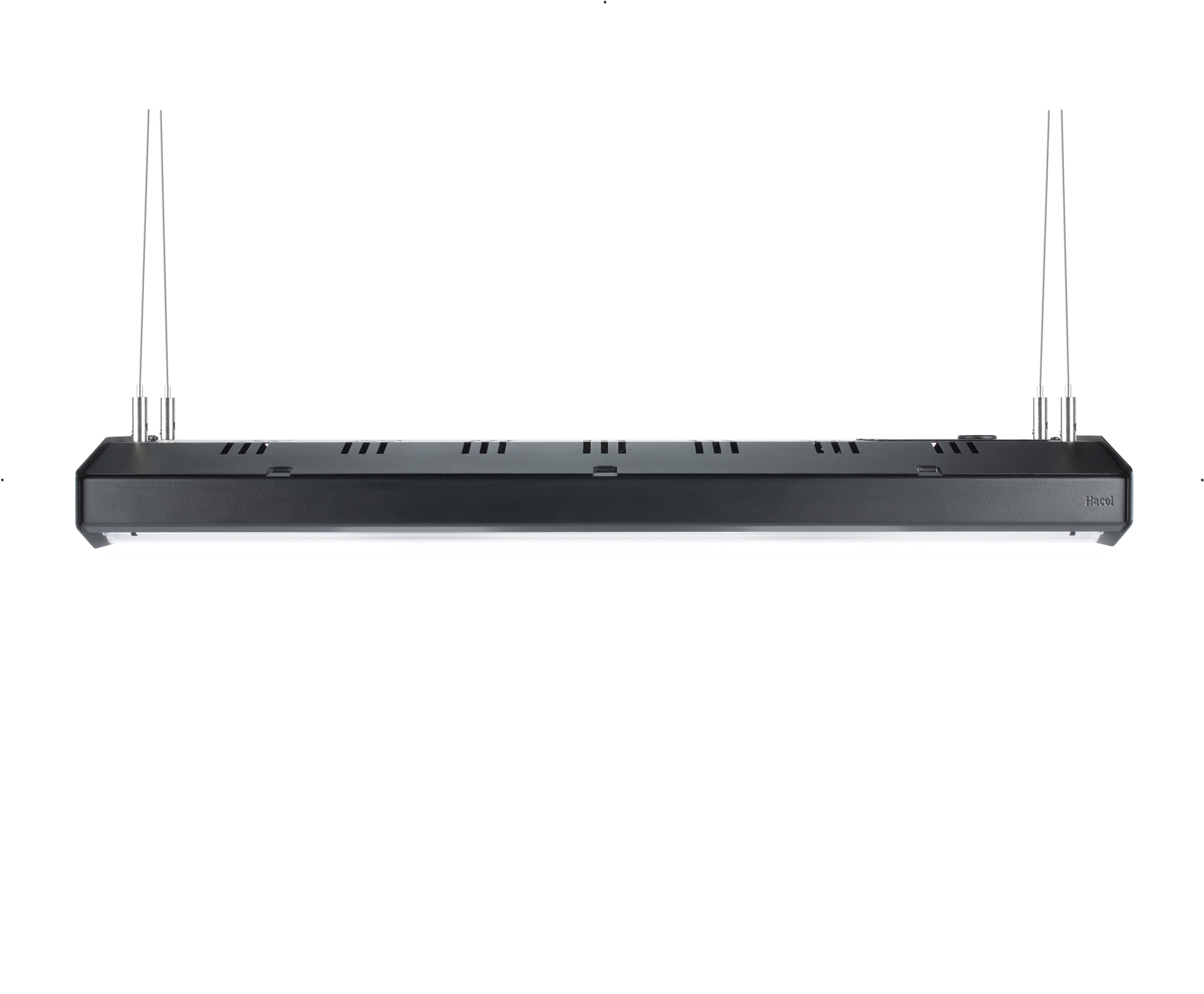

  • Suspension versions supplied with 2 x 2m Suspensions and chrome clutches as standard
  • IK08 Compliant

  • To Specify: Hacel Vertigo® Duet Highbay

    Use the Code Generator below to select your detailed product specification. Once completed, select 'add to schedule', to create a schedule of luminaires, which can be found in the top right hand corner.

    Product Prefix Control Gear Lamp Type Colour Temperature Wattage Product Colour Option 2

    Your Product Code:

    Product specification: Vertigo® Duet
