Architecturally designed luminaires

All products designed and manufactured in the UK by Hacel.

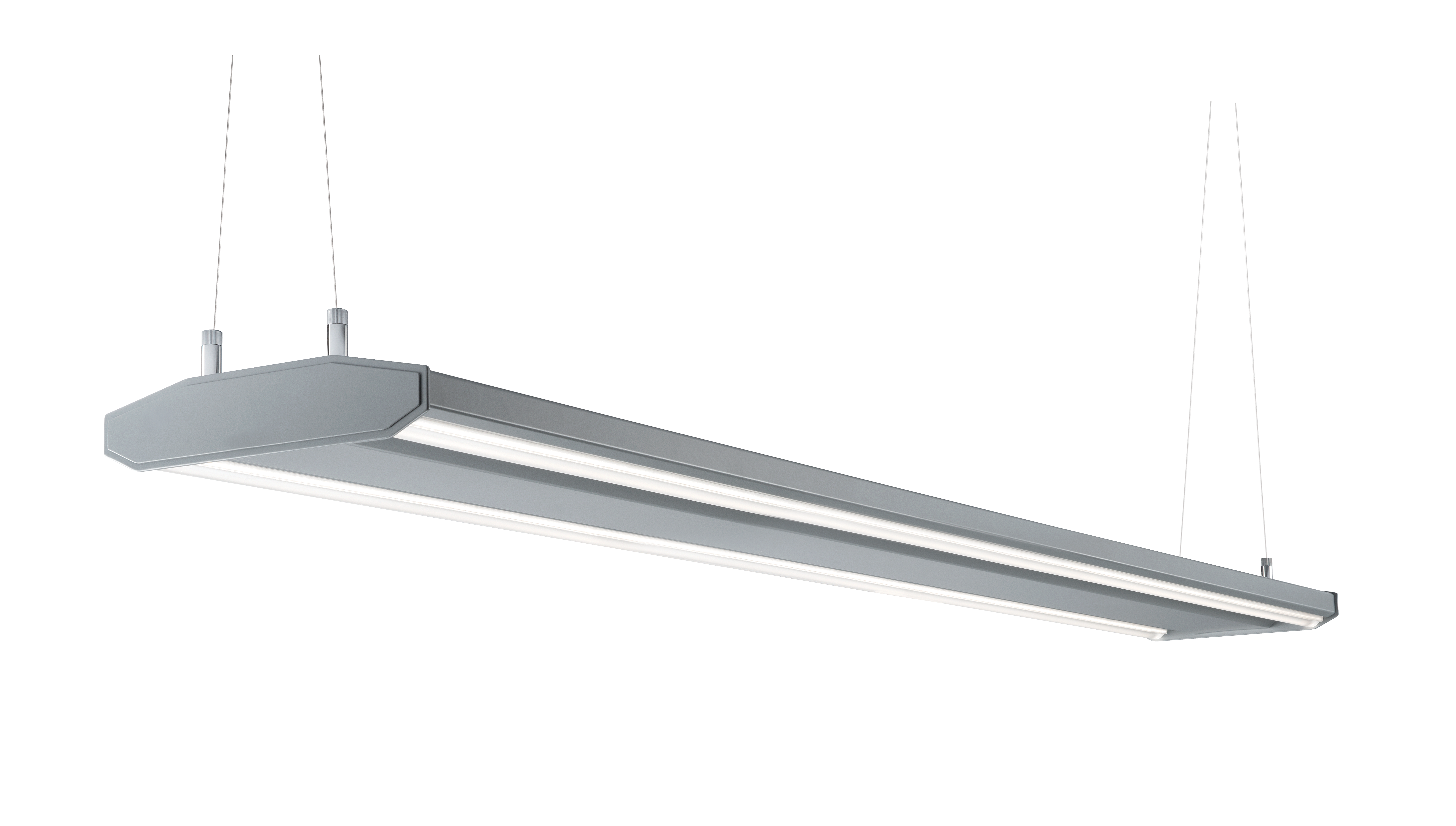

Vertigo® Duet Linear Plus

Utilising refractor lens control to provide an accurate distribution of light, Vertigo Duet Linear Plus Highbay is perfect for a host of application including Warehouses, Retail Outlets, Showrooms, Exhibition Venues, General Applications and Sports Halls (IK08 Compliant). Vertigo Duet Linear Plus Highbay offers the full benefit of class leading LED lighting; light quality, long service lifetime, excellent UGR performance, reduced energy consumption and maintenance.

  • Available in a choice of lumen outputs delivering up to 34,800 lumens
  • Efficacies up to 128 lm/W
  • Wide beam refractor (82°) as standard, ideally suited to Warehouse and Superstore applications
  • Optional extra wide beam refractor (112°) for general illumination
  • Suitable for ambient temperatures up to 45°C
  • Life expectancy in excess of 72,000 hours (L80 B10) at 25°C ambient and 70,000 hours (L80 B10) at 45°C ambient
  • Colour stability within 3 MacAdams
  • The PIR detector defaults can be modified with the use of the Hand Held Controller or Programmer (contact Technical for advice)
  • Versatile installation solutions include Suspended, Surface, Trunking and Gripple. (Gripple and Trunking not supplied with fixings)
  • Suspension versions supplied with 2 x 2m Suspensions and chrome clutches as standard
  • IK08 compliant
  • Wireless Lighting Control available, see Connected video for full overview

To Specify:

Using the Code Generator below to select your detailed product specification. Once completed select ‘add to schedule’ to create a schedule of luminaires, which can be found in the top right.

Your product code:

Product specification: Vertigo Duet Linear Plus
